This tutorial demonstrates how to implement autonomous path planning for drones in the AirGen simulation environment. You’ll learn how to make a drone take off, calculate a collision-free path to a randomly selected destination, and follow that path safely.
Notebook for this example can be found: Here

​
Introduction

Path planning is an essential component of autonomous drone systems. It allows drones to navigate complex environments while avoiding obstacles. In this tutorial, we’ll use AirGen’s built-in path planning capabilities to generate safe trajectories for our drone.

​
Setting Up the Drone

First, let’s import and initialize our drone in the AirGen environment:
from grid.robot.aerial.airgen_drone import AirGenDrone
airgen_drone_0 = AirGenDrone()
The AirGenDrone class provides a simplified interface to control aerial vehicles in the simulation.

​
Taking Off

Before we can plan a path, we need to get our drone airborne:
# Take off
airgen_drone_0.client.takeoffAsync().join()

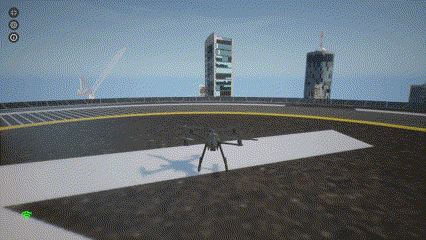

The takeoffAsync() method initiates the takeoff sequence, and the .join() call ensures that our code waits until the takeoff is complete before proceeding. Drone Takeoff

​
Exploring the Navigation Mesh

AirGen uses a navigation mesh (navmesh) to represent the traversable space in the environment. This mesh defines where the drone can safely fly:
# Get navigation mesh extents from the simulation world
nav_mesh_info = airgen_drone_0.client.getNavMeshInfo()
print("Nav mesh info: {}".format(nav_mesh_info))
The navigation mesh information includes the center point and boundaries of the navigable space. This data is crucial for determining valid destinations for our drone.

​
Generating Random Destination Points

Now let’s create a function that can sample random valid positions within our navigation mesh:
import airgen
import numpy as np

def sample_random_pose(nav_mesh_info):
    # Calculate bounds of the nav mesh from the given info
    amplitude = (
        np.absolute(
            np.array(
                [
                    nav_mesh_info[2]["x_val"] - nav_mesh_info[1]["x_val"],
                    nav_mesh_info[2]["y_val"] - nav_mesh_info[1]["y_val"],
                    nav_mesh_info[2]["z_val"] - nav_mesh_info[1]["z_val"],
                ]
            )
        )
        / 2.0
    )

    # Sample a random point on the nav mesh
    random_point = airgen.Vector3r(
        np.random.uniform(
            nav_mesh_info[0]["x_val"] - amplitude[0],
            nav_mesh_info[0]["x_val"] + amplitude[0],
        ),
        np.random.uniform(
            nav_mesh_info[0]["y_val"] - amplitude[1],
            nav_mesh_info[0]["y_val"] + amplitude[1],
        ),
        np.random.uniform(
            nav_mesh_info[0]["z_val"] - amplitude[2],
            nav_mesh_info[0]["z_val"] + amplitude[2],
        ),
    )

    # Sample a random yaw angle
    random_yaw = np.random.uniform(-np.pi, np.pi)

    # Return the sampled pose
    return airgen.Pose(
        random_point, airgen.Quaternionr(airgen.Vector3r(0, 0, random_yaw))
    )
This function:
  1. Calculates the extents of the navigation mesh
  2. Samples a random position within those bounds
  3. Generates a random orientation (yaw angle)
  4. Returns a complete 6-DOF (degrees of freedom) pose

​
Path Planning to a Random Destination

Now we can plan a path from the drone’s current position to a randomly selected destination:
# Get current pose of the drone in 6-DOF
start_pose = airgen_drone_0.client.simGetVehiclePose()

# Sample a random valid pose in the environment
goal_pose = sample_random_pose(nav_mesh_info)

# Set altitude to same as the start
goal_pose.position.z_val = start_pose.position.z_val

# Compute a collision-free path between start and goal
path = airgen_drone_0.client.simPlanPath(
 start_pose.position, goal_pose.position, smooth_path=True, draw_path=True
)
The simPlanPath function does the heavy lifting:
  • It takes the start and goal positions
  • Finds a collision-free path between them
  • Optionally smooths the path for more natural drone movement
  • Can visualize the path in the simulation (when draw_path=True)

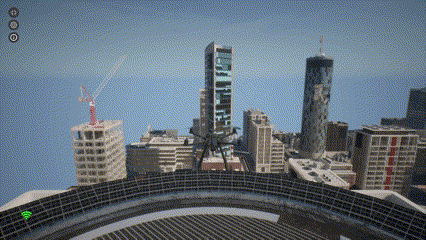

Path Generation

​
6. Following the Planned Path

Finally, we need to convert the planned path into a format suitable for the drone’s control system and command the drone to follow it:
points = []

# Convert path into AirGen waypoints for control
for waypoint in path:
    points.append(
        airgen.Vector3r(waypoint["x_val"],
        waypoint["y_val"], waypoint["z_val"])
    )

# Move the drone along the planned path at a velocity of 5 m/s
velocity = 5.0
airgen_drone_0.client.moveOnPathAsync(
    points,
    velocity,
    120,  # 120 seconds timeout
    airgen.DrivetrainType.ForwardOnly,
    airgen.YawMode(False,, 0),
    -1,
    0,
).join()
The moveOnPathAsync method takes several parameters:
  • points: List of waypoints defining the path
  • velocity: Desired speed in meters per second
  • timeout: Maximum time to wait for completion (in seconds)
  • drivetrain: Control mode for the drone’s movement (ForwardOnly means the drone will always face its direction of travel)
  • yaw_mode: Controls how the drone’s heading changes during flight
  • Lookahead parameters that influence how closely the drone follows the path

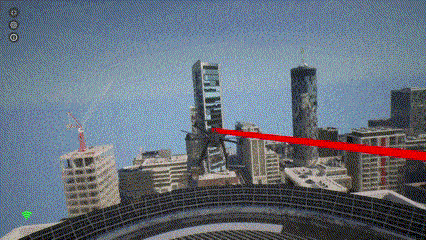

The .join() call ensures our code waits until the drone completes the entire path. Following Path

​
Understanding Path Planning Parameters

Let’s examine some of the key parameters in more detail:

​
DrivetrainType

ForwardOnly means the drone orients itself in the direction of travel, like an airplane. Alternatively, MaxDegreeOfFreedom allows the drone to move in any direction while maintaining its orientation.

​
YawMode

The first parameter (is_rate) determines how to interpret the second parameter. When set to False, the second parameter is an absolute yaw angle in radians. When set to True, the second parameter becomes a yaw rate (angular velocity) in radians/second.

​
Lookahead Parameters

The last two parameters in moveOnPathAsync control how closely the drone follows the path. A value of -1 uses the default lookahead distance, while the last parameter (set to 0) is the adaptive lookahead factor, where zero means non-adaptive.
