This tutorial provides a detailed, step-by-step guide to configuring and launching your custom session on the GRID platform. In this session, you will:
  • Set up a custom scenario using the neighbourhood scene.
  • Configure an SUV vehicle with custom camera settings.
  • Add a LiDAR sensor with tailored parameters.
  • Integrate an AI model for image segmentation.

​
Configuring a Custom Session

Follow these steps to launch your custom scenario:
  1. Configure the Robot

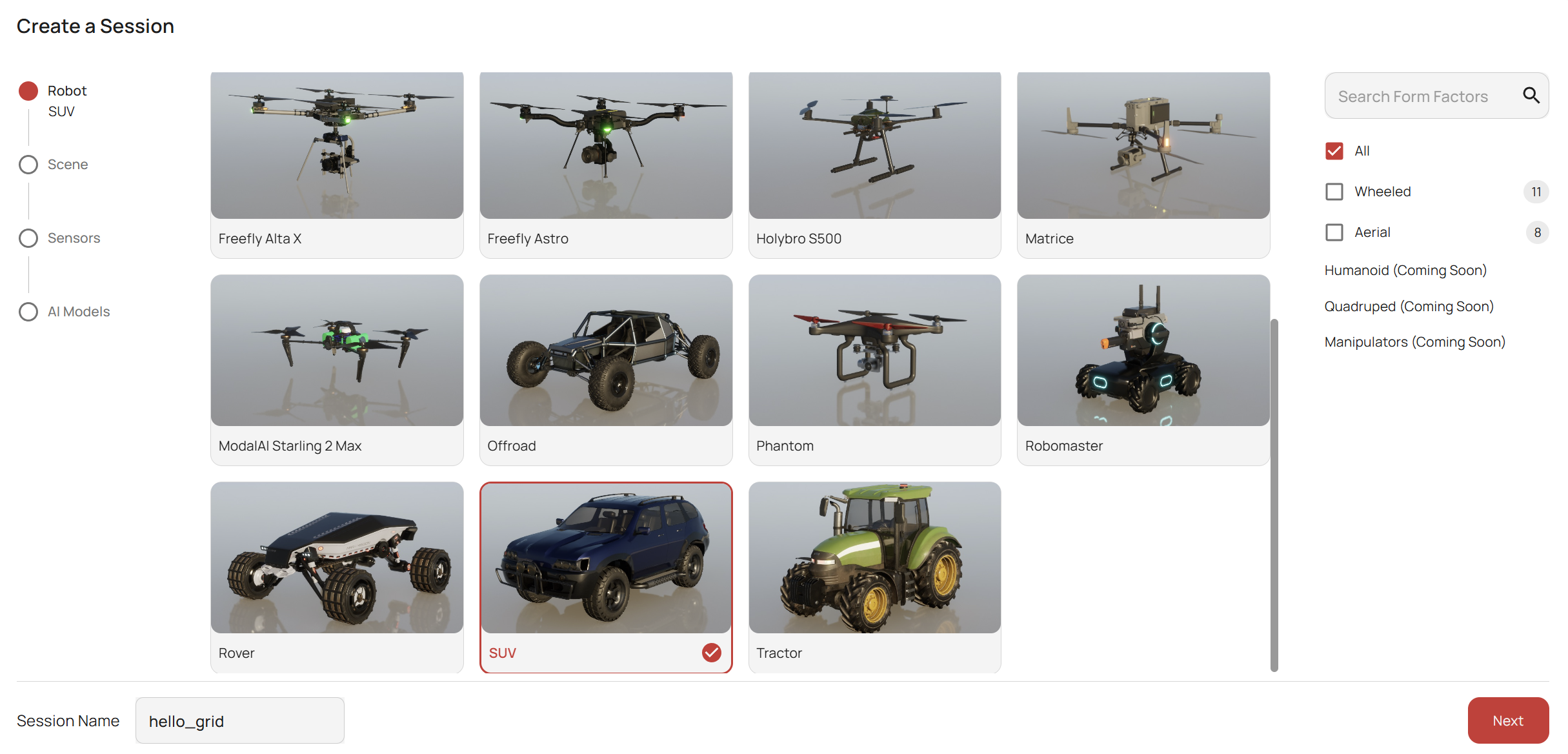

    For this tutorial, we will use an SUV positioned at the origin. You can adjust the vehicle type and starting position according to your needs.     Car Selection
  2. Name Your Session and Select the Scene
    Provide a descriptive name for your session and choose the neighbourhood scene from the list of available scenarios.     Scene Selection
  3. Configure Sensors
    • RGB Camera: Set up an RGB camera with a 512x512 resolution to ensure high-quality images for AI processing. Camera Settings

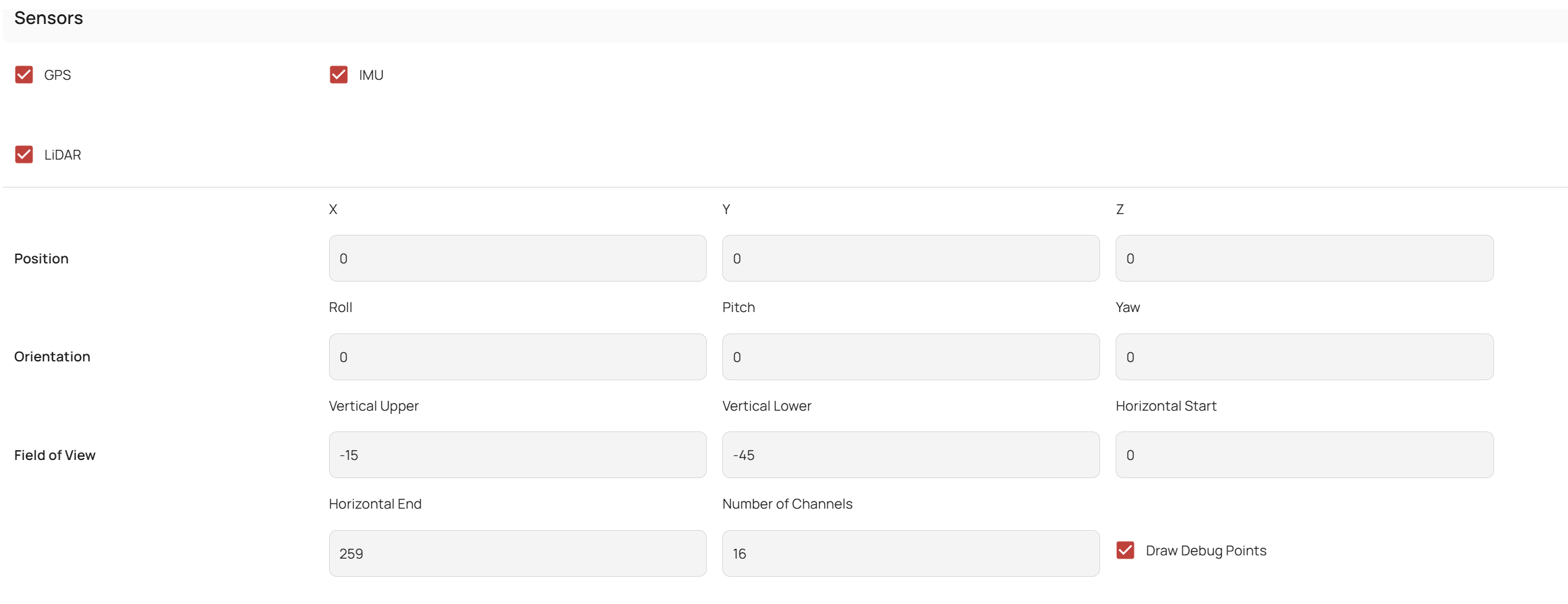

    • LiDAR Sensor: Add a LiDAR sensor with custom parameters. For more details on sensor configuration options, refer to the Sensors tab. Sensor Settings
  4. Select AI Models

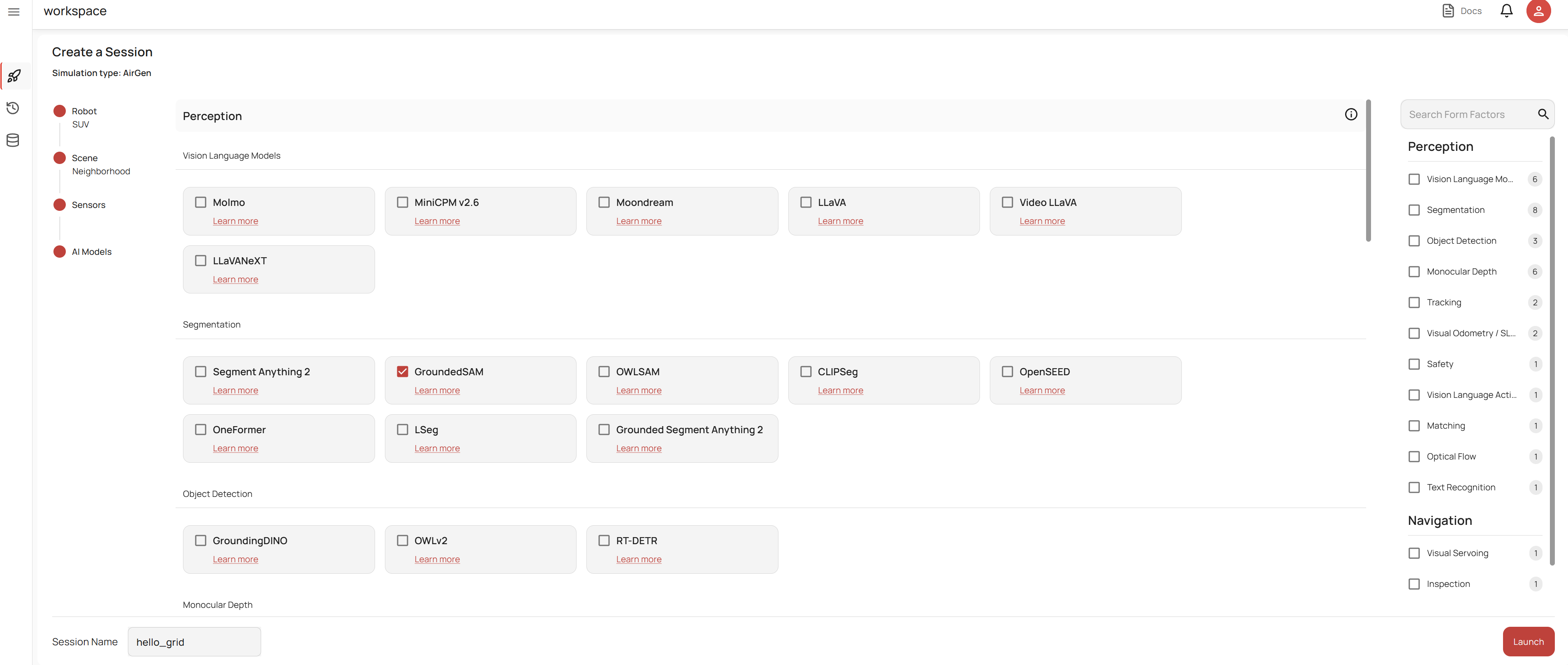

    For this demonstration, we will integrate the Grounded SAM model to perform image segmentation tasks.     Model Selection
When you are ready, click the Launch button to start the simulation.

​
Get Started with the GRID Session

Once your simulation is running, you can interact with GRID using the code interface along with the Copilot, Telemetry, and Storage tabs.
All of the code featured in this section is available in a ready-to-run notebook here.

​
Initial Setup and Control

  • Initialize the Environment:

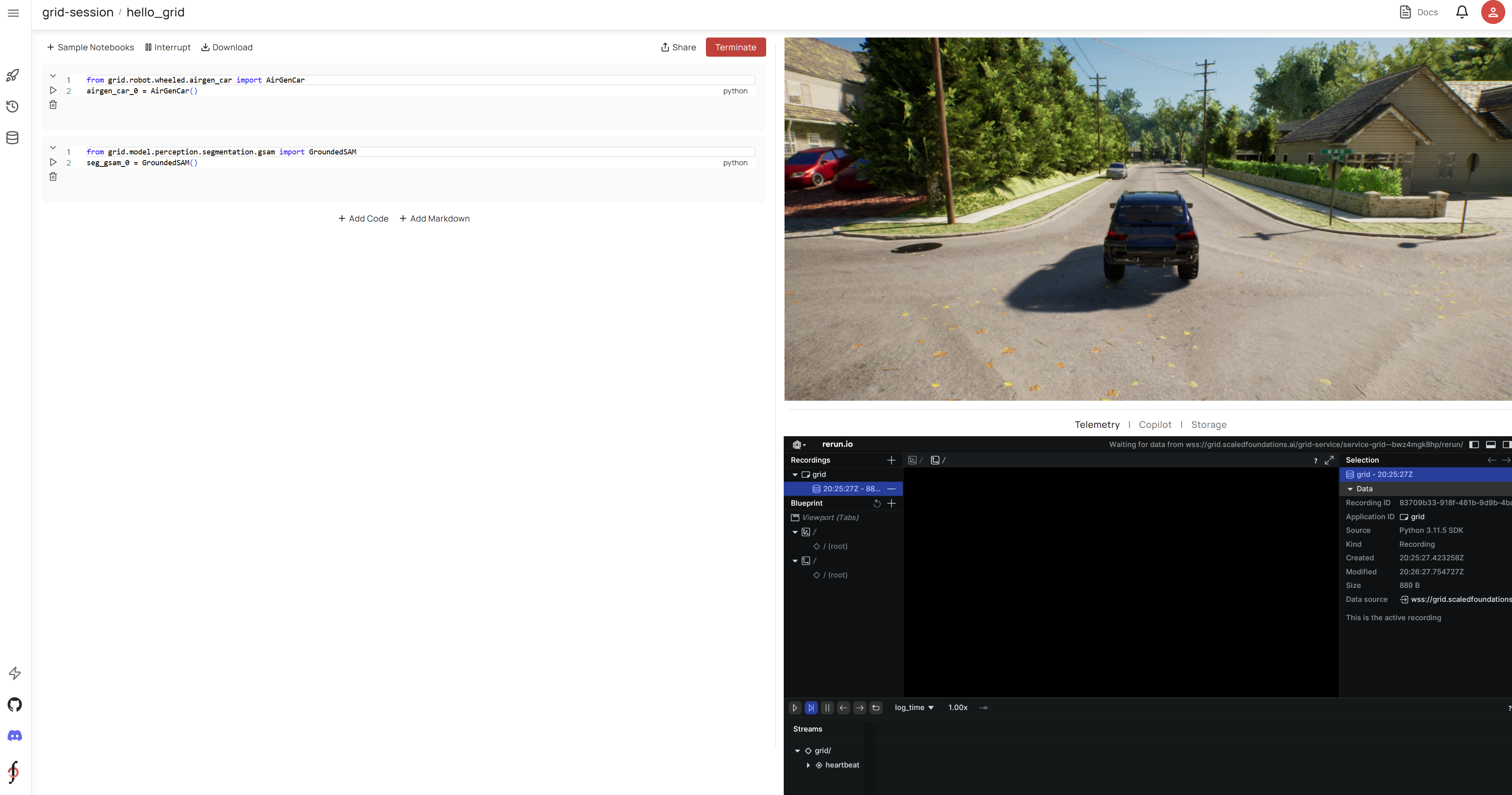

    Begin by running the boilerplate code to initialize the Airgen API and load the necessary weights for the Grounded SAM model.     Start Code
  • Control the Vehicle:
    Use the setCarTargetSpeed() API (CarClient documentation) to move the car forward, and then capture images using the getImages() API. The following code block demonstrates how to position the car and capture an image:     Capture Image
    We are using the “front_center” camera in this example because the road is directly ahead. For a list of default cameras and their positions, refer to the Cameras tab.

​
Image Segmentation with Grounded SAM

  • Segment the Road:
    Apply the Grounded SAM model to segment the road in the image you just captured. Visualize the output using the rerun module. We will be running the below code to segment the road:
    road = seg_gsam_0.run(image[0][0], "road")

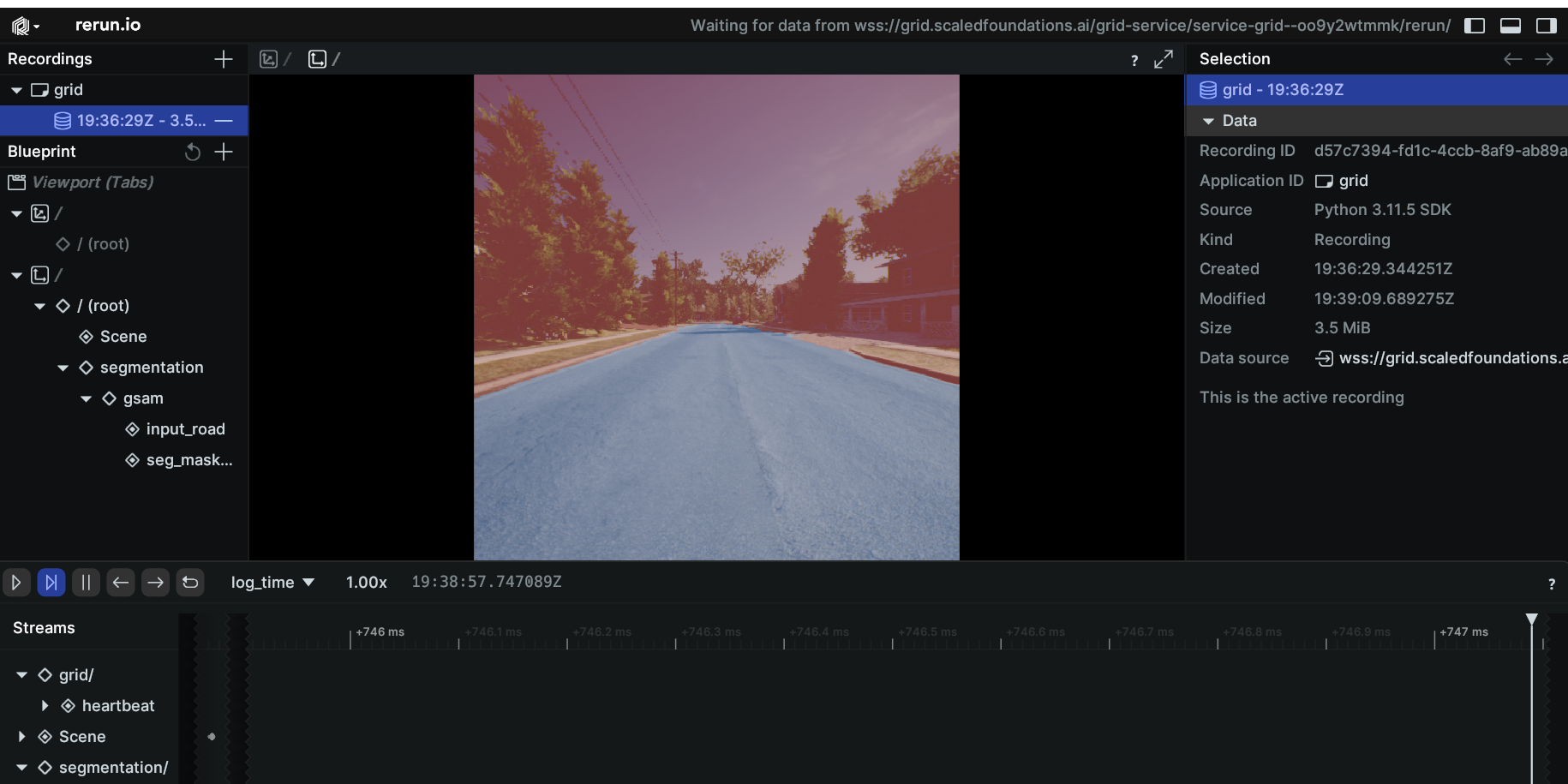

    Segment Image
  • Alternate Camera View:
    Try capturing and segmenting an image from the “back_center” camera for a different perspective.     The following code block captures an image from the back camera:
    image_new = client.getImages("back_center", [0])
rr.log("Car", rr.Image(image_new[0][0]))

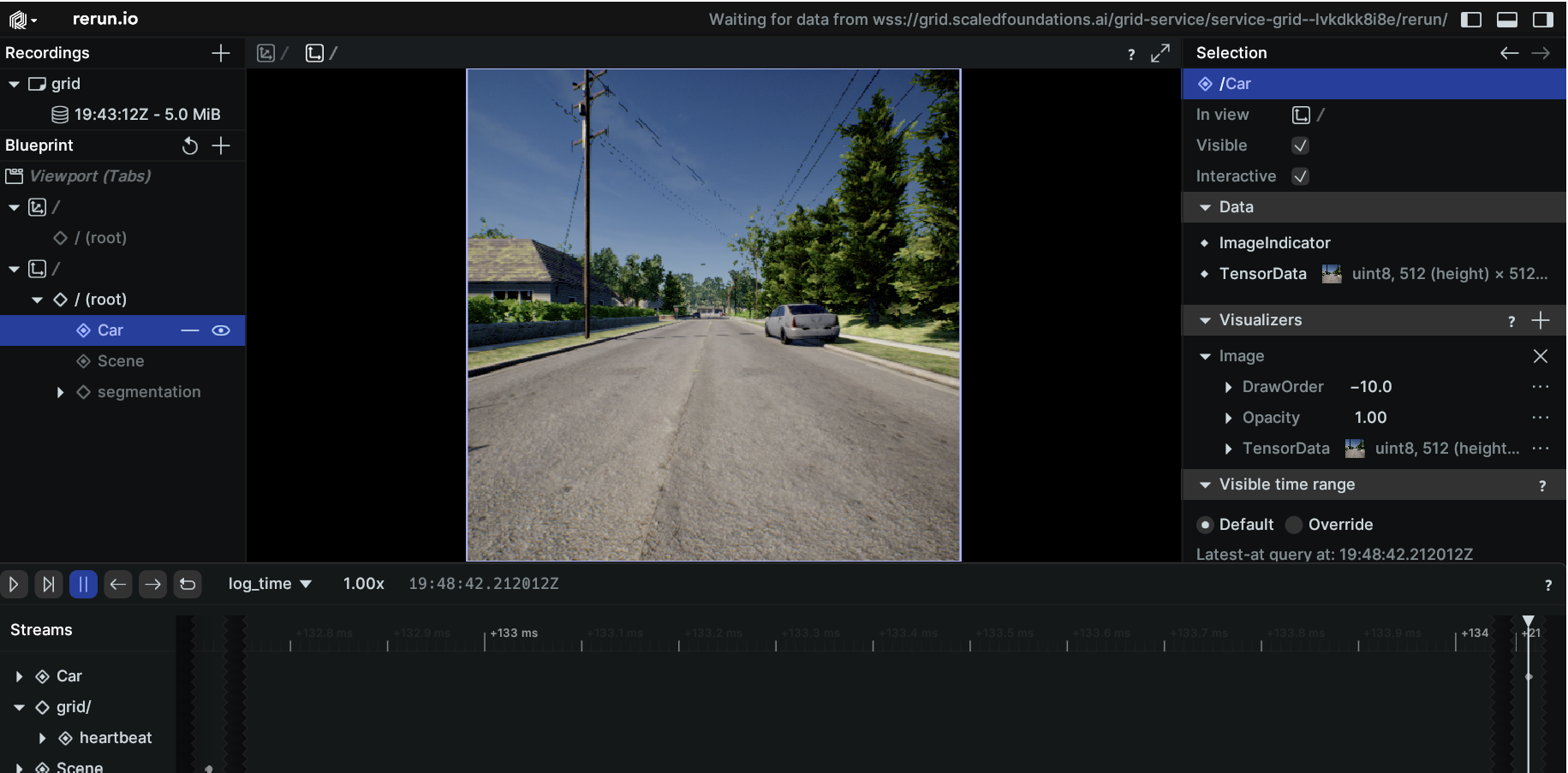

    Original Back Camera Let us now segment the image captured from the back camera:
    car = seg_gsam_0.run(image_new[0][0], "car")
    Segmented Image
  • Move to a Specific Position:
    Advance the car to the position x = -120 metres using the following code block:
    client.setCarTargetSpeed(5)
while True:
    if client.simGetVehiclePose().position.x_val <= -120:
        client.setCarTargetSpeed(0)
        break
print(client.simGetVehiclePose().position)

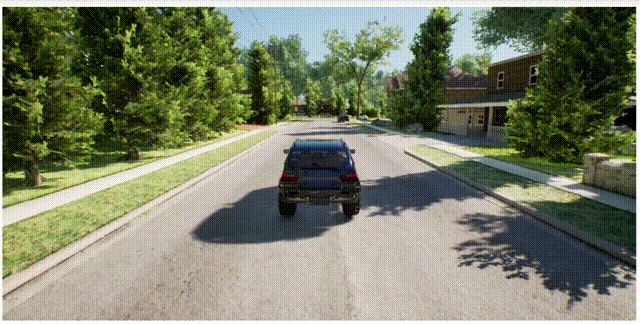

    Move to Position
  • Perform a Right Turn:
    To execute a right turn, set the steering to 1.0 for a sharp turn, then move the car slowly to complete the maneuver.
    controls = client.getCarControls()
controls.is_manual_gear = False
controls.steering = 1.0
client.setCarControls(controls)
client.setCarTargetSpeed(2.1)
time.sleep(3)
client.setCarTargetSpeed(0)
    Right Turn
  • Return to Straight Movement:
    Reset the steering to 0.0 to resume straight-line motion.
    controls.steering = 0.0
client.setCarControls(controls)
client.setCarTargetSpeed(2)
time.sleep(3)
client.setCarTargetSpeed(0)

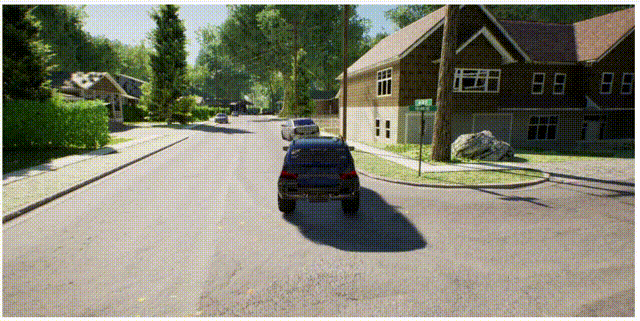

    Straight Movement

​
Working with LiDAR Data

  • Generate a Point Cloud:
    Utilize the getLidardata() API (LiDAR documentation) to capture LiDAR data. The code snippet below shows how to transform the raw data into a list of points with the appropriate coordinate transformations.
    def get_lidar_data(client):
  lidar_data = client.getLidarData()
  if len(lidar_data.point_cloud) < 3:
      print("No points received from Lidar")
  else:
      points = np.array(lidar_data.point_cloud, dtype=np.float32)
      points = np.reshape(points, (int(points.shape[0] / 3), 3))
      points_xyz = np.zeros_like(points)
      points_xyz[:, 0] = points[:, 0]
      points_xyz[:, 1] = points[:, 1]
      points_xyz[:, 2] = -points[:, 2] + 1
      print("Got LiDAR Data")
      return points_xyz
  • Visualize the Point Cloud:
    With Matplotlib, scatter the LiDAR point cloud data and save the plot as an image. You can locate the session’s directory via the GRID_USER_SESSION_BLOB_DIR variable. Below is how you’re storage tab would look like after you save the LiDAR data.

%matplotlib inline
import os
from grid import GRID_USER_SESSION_BLOB_DIR
import numpy as np
import matplotlib.pyplot as plt
points = get_lidar_data(client)
fig = plt.figure()
ax = fig.add_subplot(projection='3d')
for point in points:
    ax.scatter(point[0], point[1], point[2])
ax.set_xlabel('X Label')
ax.set_ylabel('Y Label')
ax.set_zlabel('Z Label')
save_path = os.path.join(GRID_USER_SESSION_BLOB_DIR, "pcl.png")
plt.savefig(save_path, bbox_inches='tight')
print("Saved!")

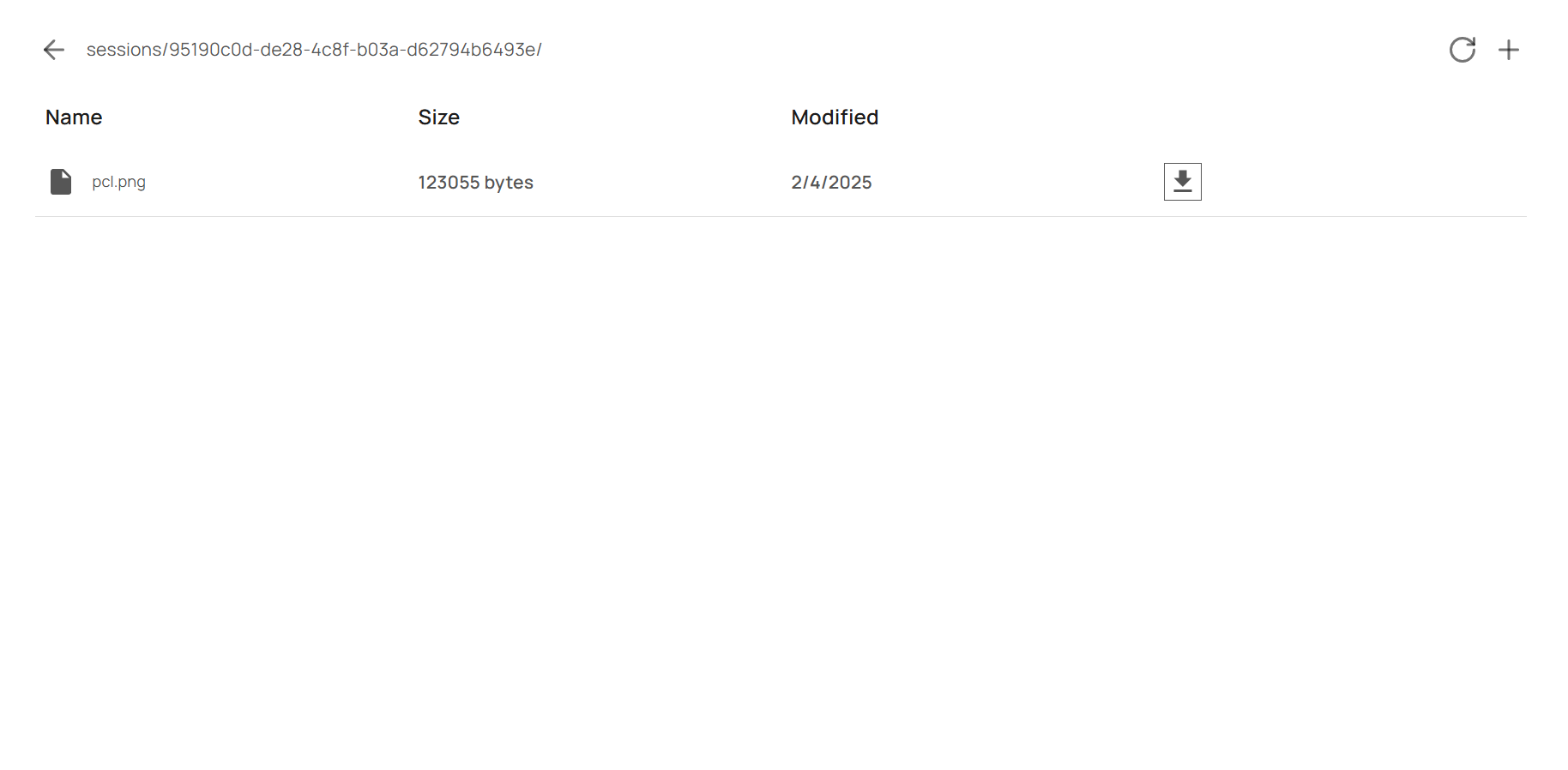

    Storage Drive The saved point cloud is as follows: Visualize Point Cloud
